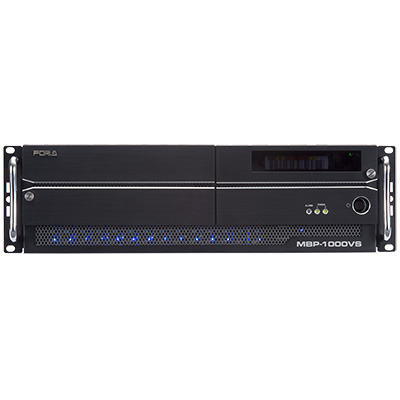

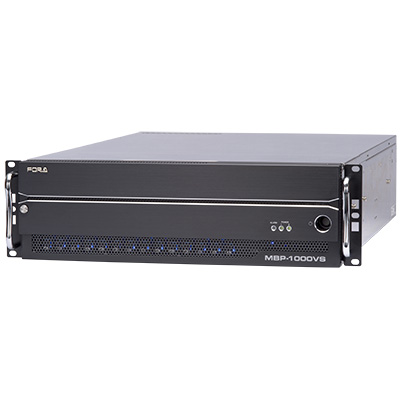

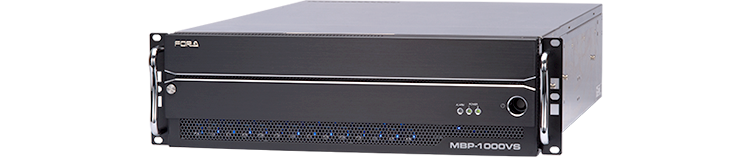

12G-SDI/IP Multi-Channel Video Server
4K XAVC? and MPEG-2 codecs are available. Whether your video server will be used for ingest, playout, or other applications, the series has a model perfect for your needs. Enjoy the reliability of XAVC? and MPEG-2 hardware codecs.*1 Add LTO for simultaneous backup*2 during 4K recording or extended recording.*3
1 Switches between recording and playback. *2 One channel only. *3 Up to 18.7 hours of continuous recording to LTO-7 (XAVC Class 300).
Support formats: 2160/59.94p*4 or 1080/59.94i
Redundant power supply as standard
Full range of playout and ingest system applications. Bridges baseband output from cameras with File-based broadcast workflows.
Can display time codes or credits on a monitor in sync with the main playout line
Control interfaces: Add an optional serial port or GPI port
4 4K models only
Quad-channel 4K XAVC codec support. Standard configuration provides two channels for recording and two for playback. Can be cofigured with up to four channels for recording and four for playback.
Choose from 12G-SDI or 3G-SDI I/O (maximum two inputs and two outputs via Quad Link 3G-SDI).

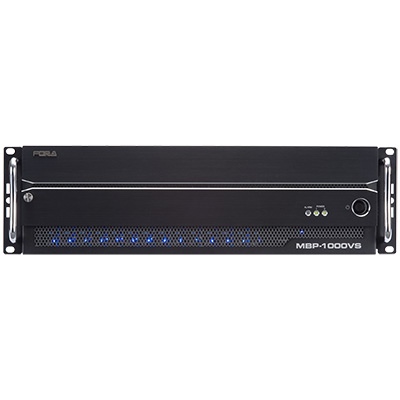

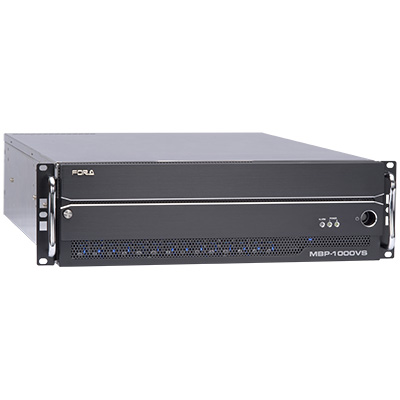

MPEG2 (HD) and MPEG2 (HD422) models
Choose 4, 6, or 8 channels
Choose from four SSD capacities: 1.2 TB, 2.4 TB, 4.8 TB, or 9.6 TB
MPEG2 hardware codec support
MXF recording and playback: 10-bit MPEG-2 4:2:0 material at 25/35 Mbps or 4:2:2 material at 50 Mbps
Based on the P series, with added graphics playout
Choose 4, 6, or 8 channels
Choose from four SSD capacities: 1.2 TB, 2.4 TB, 4.8 TB, or 9.6 TB
2-channel title playout supported. For each hardware codec channel, provides an SDI port for program and monitor output.

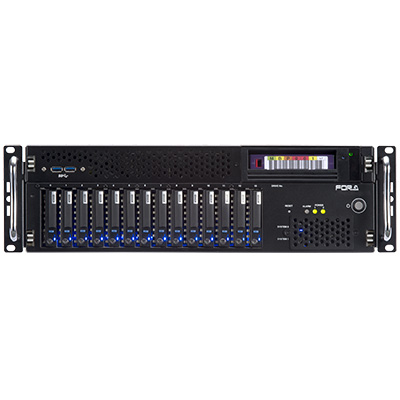

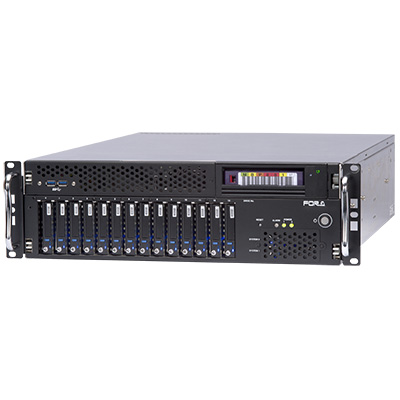

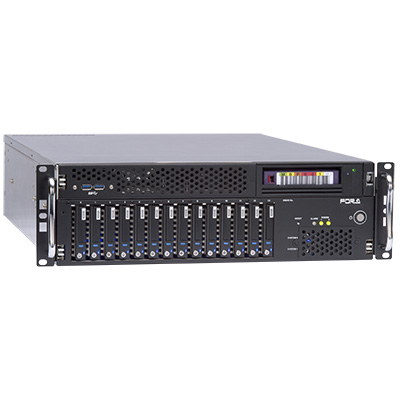

4K-compatible models with 12G-SDI interfaces
Quad-channel HD or 4K input and output
Choose from four SSD capacities: 4.8 TB, 9.6 TB, or 15 TB
Quad-channel XAVC codec support
Can switch between 12G-SDI and Quad Link 3G-SDI
